Description

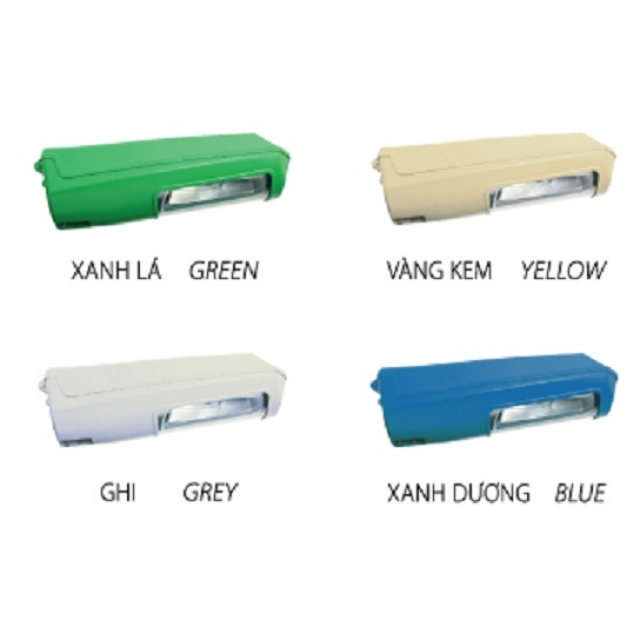

- Die-cast aluminum canopy and body. Exterior powder painted in colours: Green, Sky Blue, Cream Yellow, Grey.
- Easy access to 220V-50Hz control gear and lamp, using for Sodium or Metal halide.
- Toughened front glass, impact and heat-resistant.
- E40 lampholder can be adjusted position based on different lamps in order to achieve the best light distribution.
- Clamp made of PC.
- The reflector is specially designed, made of high purity aluminum, anodised to achieve the best lighting

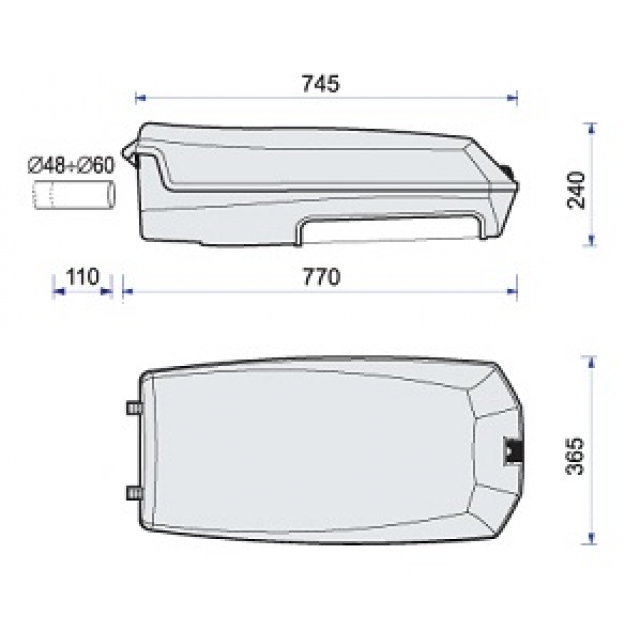

Dimension - Installation
- W: 365mm, L: 745mm, H: 240mm
- The luminaire fitting from horizontal Ø48 - Ø60, 110mm depth, angle tilt luminairte according to the design.
Drawing
